- Country
- United States of America (USA)
- Manufacturer / Brand
- Automatic Radio Mfg. Co.; Boston (MA)
- Year
- 1957 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 146379
Sams photofact.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- 1
- Main principle
- Superhet with RF-stage; ZF/IF 265 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: TPP-88 - Automatic Radio Mfg. Co.;
- Shape
- Chassis only or for «building in»
- Notes
- Battery operated 4 tube, 1 transistor custom built automobile AM receiver. Sams photofact set 488 folder 4 date 6-60 features the Automatic Radio models TPP-87A (for 1957 Plymouth), TPP-88 and TPP-88C (for 1957-58 Plymouth) as the same schematic.
- Literature/Schematics (1)

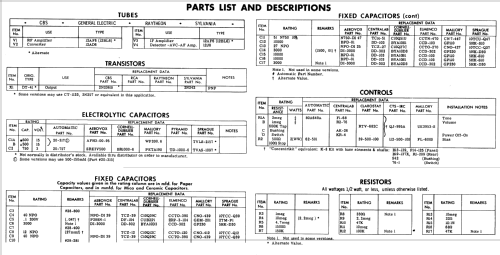

- Photofact Folder, Howard W. SAMS (Set 488 folder 4 date 6-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
