• Year
  • 1959 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 150880

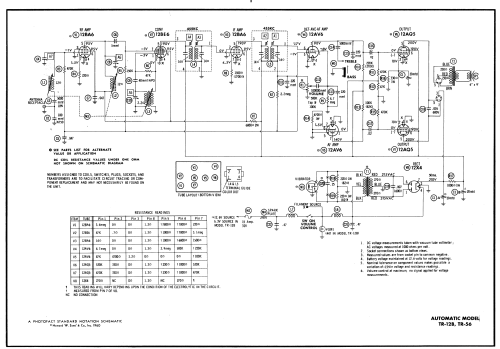

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 or 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: TR-12B - Automatic Radio Mfg. Co.;
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Battery operated tractor AM receiver. Sams photofact set 492 folder 6 date 7-60 features the Automatic Radio models TR-12B and TR-56 as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
