TV 1651 (Series B)

• Country
• United States of America (USA)

• Manufacturer / Brand
• Automatic Radio Mfg. Co.; Boston (MA)

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 349703

• Picture
• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• 6BH6 or 6AG5 6AG5 or 6J6 6J6 6AU6 6AU6 6AU6 6AU6 6AL5 6AU6 6K6GT 6AU6 6AL5 6AT6 6K6GT or 6V6GT 12AU7 6J5 6SN7GT 6AL5 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 16AP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: TV 1651 - Automatic Radio Mfg. Co.;

• Shape
• Tablemodel, with any shape - general.

• Notes

• Automatic model TV-1651 is a 16” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with a VHF tuner and picture tube 16AP4.

• Literature/Schematics (1)

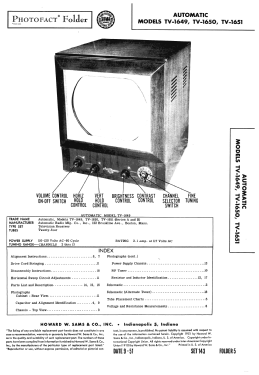

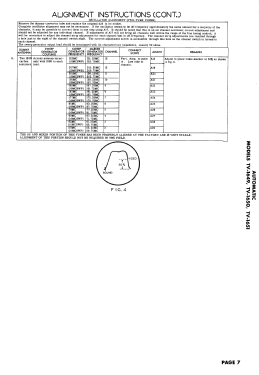

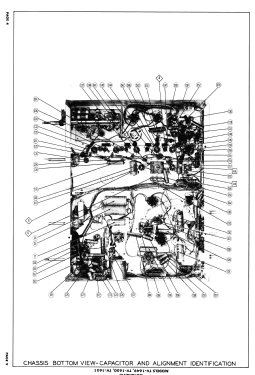

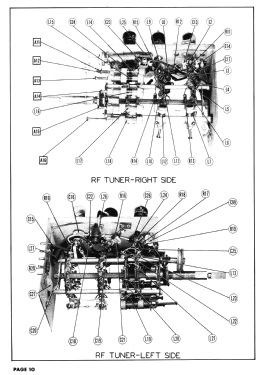

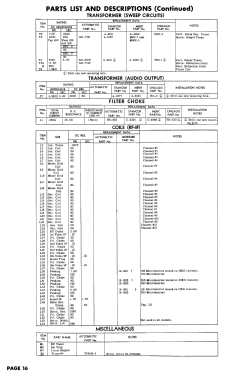

• Photofact Folder, Howard W. SAMS (Set 143, folder 5, dated 9-51)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
