- Country
- United States of America (USA)
- Manufacturer / Brand
- Automatic Radio Mfg. Co.; Boston (MA)
- Year
- 1949 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 126101

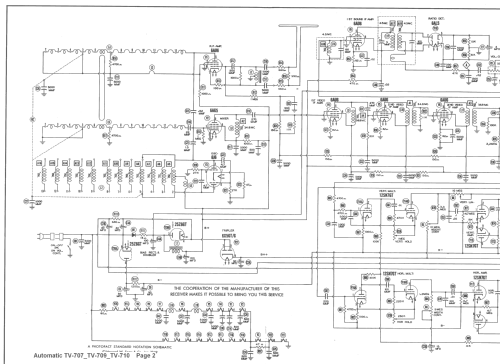

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6AU6 6AG5 6J6 6AU6 6AU6 6AU6 6AL5 6AU6 6AU6 6AL5 6AT6 25L6GT 6AU6 12SN7GT 12SN7GT 12SN7GT 12SN7GT 12SN7GT 1B3GT 25Z6GT 6X5GT 7JP4
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: TV-707 - Automatic Radio Mfg. Co.;
- Shape
- Tablemodel, low profile (big size).
- Notes
-
7" b/w TV with US standard VHF tuner, blonde mahogany cabinet.
Channels 2 through 13.
- Price in first year of sale
- 190.00 $
- Source of data
- -- Original prospect or advert
- Mentioned in
- Photofact Folder, Howard W. SAMS (498-6 Set 60 Folder 6, April 1949)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
