- Country
- United States of America (USA)
- Manufacturer / Brand
- Automatic Radio Mfg. Co.; Boston (MA)
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 242834
SAMS Photofact Vol.8/50 81-3 Set 81 Folder 3
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes

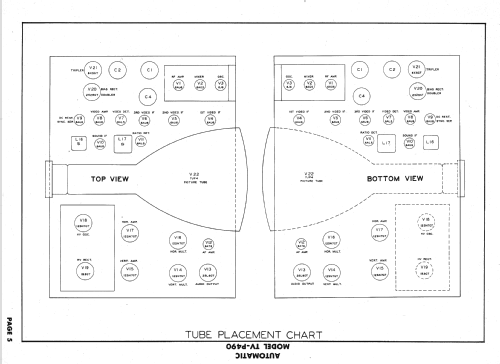

- 6AU6 6AG5 6J6 6AU6 6AU6 6AU6 6AL5 6AU6 6AU6 6AU6 6AL5 6AT6 25L6GT 12SN7GT 12SN7GT 12SN7GT 12SN7GT 12SN7GT 1B3GT 25Z6GT 6X5GT 7JP4
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.8 inch = 9.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: TV-P490 - Automatic Radio Mfg. Co.;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
B/w Televison Receiver with 7" kinescope round CRT with electrostatic deflection. Tunes channels 2 through 13.
- Mentioned in
- Photofact Folder, Howard W. SAMS (Date 1/50, Set 81, Folder 3)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
