- Country
- United States of America (USA)
- Manufacturer / Brand
- Automatic Radio Mfg. Co.; Boston (MA)
- Year
- 1953 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 33852
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 1.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: X-50 - Automatic Radio Mfg. Co.;
- Shape
- Chassis only or for «building in»
- Notes
- Vibrator for +B.
- External source of data
- Ernst Erb

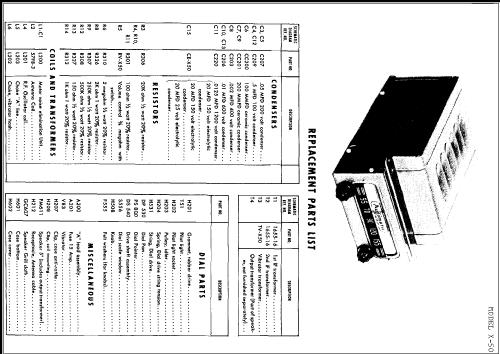

- Circuit diagram reference
- Rider's Perpetual, Volume 21, Copyright 1950
