- Country
- Switzerland
- Manufacturer / Brand
- Autophon AG (inkl. Téléphonie SA); Solothurn
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 11401
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 471 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- WiredWirelessReceiver (AF or RF)
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

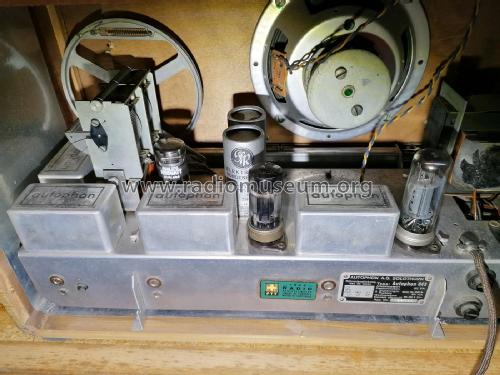

- Model: 843-48 - Autophon AG inkl. Téléphonie
- Dimensions (WHD)
- 500 x 305 x 225 mm / 19.7 x 12 x 8.9 inch
- Notes
- 4000/20296a*
- Net weight (2.2 lb = 1 kg)
- 7.1 kg / 15 lb 10.2 oz (15.639 lb)
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
