• Country
• Switzerland

• Manufacturer / Brand
• Autophon AG (inkl. Téléphonie SA); Solothurn

• Year
• 1951–1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 11409

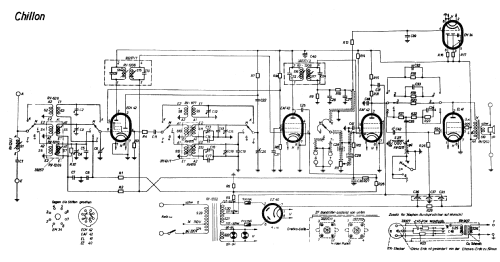

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 EM34 EZ40

• Main principle
• Superheterodyne (common); ZF/IF 471 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• WiredWirelessReceiver (AF or RF)

• Power type and voltage
• Alternating Current supply (AC) / 150/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

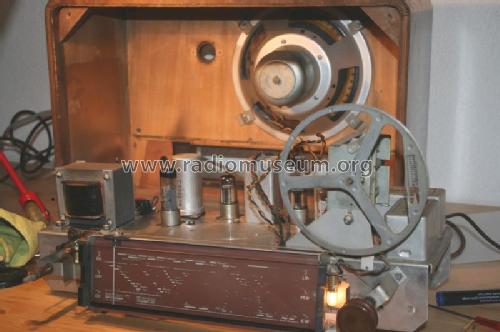

• Model: Chillon - Autophon AG inkl. Téléphonie

• Dimensions (WHD)
• 500 x 350 x 240 mm / 19.7 x 13.8 x 9.4 inch

• Notes
• 1700/20543b*

• Net weight (2.2 lb = 1 kg)
• 9.3 kg / 20 lb 7.8 oz (20.485 lb)

• Price in first year of sale
• 640.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Die Tungsram-Tabellen führen das Modell auf.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
