• Country
• Switzerland

• Manufacturer / Brand
• Autophon AG (inkl. Téléphonie SA); Solothurn

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 11328

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• AK2 AF3 ABL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 471 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

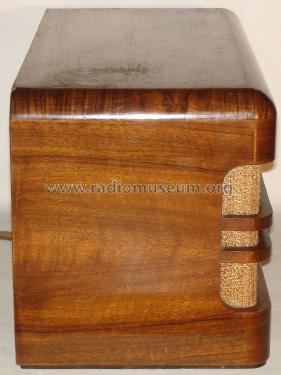

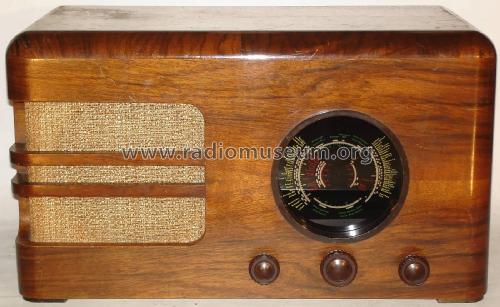

• Model: Favorit 38 - Autophon AG inkl. Téléphonie

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 485 x 280 x 245 mm / 19.1 x 11 x 9.6 inch

• Notes
• 4000/RD2449a/b*(rundl.) . 2 verschiedene Antennenbuchsen.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb
