- Country
- Switzerland
- Manufacturer / Brand
- Autophon AG (inkl. Téléphonie SA); Solothurn
- Year
- 1943/1944
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 11358
Modell mit ECH4 als Mischröhre
PTT-Kontrollmarke 1943
Elektrodynamischer Lautsprecher
Spannungswähler Wechselstrom

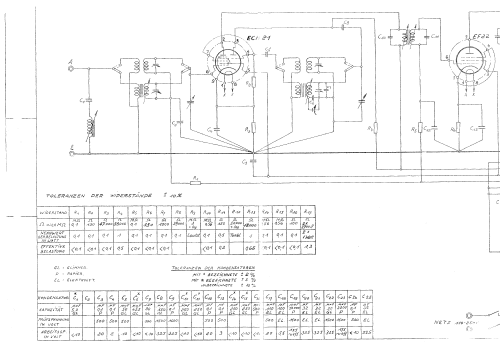

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 471 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Léman II - Autophon AG inkl. Téléphonie
- Dimensions (WHD)
- 454 x 288 x 197 mm / 17.9 x 11.3 x 7.8 inch
- Notes
- 1000/20037a+13015b*
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
