• Country
• Switzerland

• Manufacturer / Brand
• Autophon AG (inkl. Téléphonie SA); Solothurn

• Year
• 1936/1937

• Category
• Wired Receiver (AF only)

• Radiomuseum.org ID
• 72568

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• AC2 AL4 AZ1

• Main principle
• Audio-Amplification; 2 AF stage(s)

• Wave bands
• - without

• Details
• Wired Wireless Receiver(AF only)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

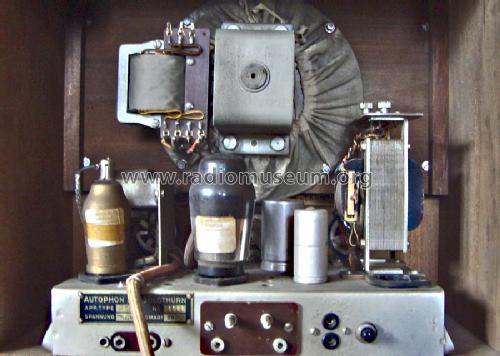

• Model: NF-Telefonrundspruch T2S [AC2] - Autophon AG inkl. Téléphonie

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• Zenithschalter. Siehe auch Modell mit US-Röhren und das mit Stiftröhren sowie Variante 1936. Tungsramröhren führen ein T vor der Röhren-Gemeinschaftsbezeichnung.

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
