Pilatus RE95 (Ch= R20)
Autophon AG (inkl. Téléphonie SA); Solothurn
- Country
- Switzerland
- Manufacturer / Brand
- Autophon AG (inkl. Téléphonie SA); Solothurn
- Year
- 1955–1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 11428
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- B250C100
- Main principle
- Superheterodyne (common); ZF/IF 471/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 150; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org

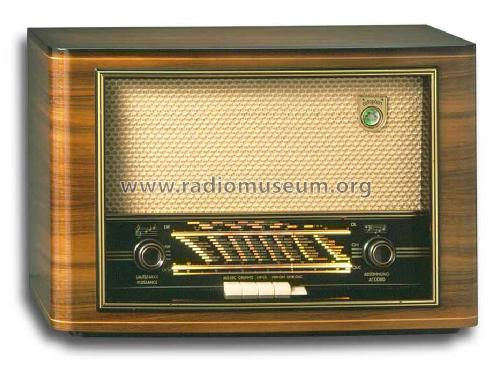

- Model: Pilatus RE95 - Autophon AG inkl. Téléphonie
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 580 x 390 x 280 mm / 22.8 x 15.4 x 11 inch
- Notes
-
Autophon Pilatus RE95 verwendet das Chassis des Chillon U-RE95. Unterschiede in der Gehäuseausführung sind uns derzeit nicht bekannt.
1 Taste Grammo.
- Net weight (2.2 lb = 1 kg)
- 12.5 kg / 27 lb 8.5 oz (27.533 lb)
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
