• Country
• Switzerland

• Manufacturer / Brand
• Autophon AG (inkl. Téléphonie SA); Solothurn

• Year
• 1952 ?

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 89946

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6AK5 6BH6 6BJ6 6BE6 ECL80 EBF80

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

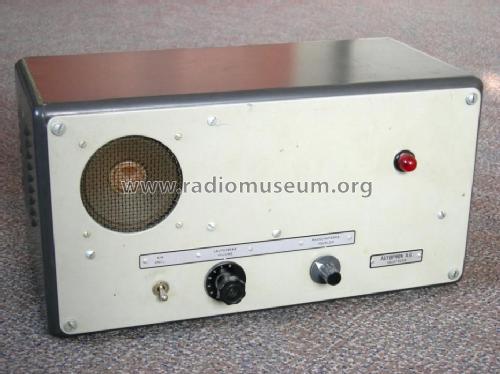

• Model: Radiovox E64 - Autophon AG inkl. Téléphonie

• Shape
• Tablemodel, low profile (big size).

• Notes
• Röhren Mehrfachnennung, Empfangsbereich: 156-174 MHz.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
