Rex-Medium

• Country
• Switzerland

• Manufacturer / Brand
• Autophon AG (inkl. Téléphonie SA); Solothurn

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 11317

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• TAF3 TAK2 TAF3 TABC1 TAL1 TAZ1

• Main principle
• Superhet with RF-stage; ZF/IF 465 or 471 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

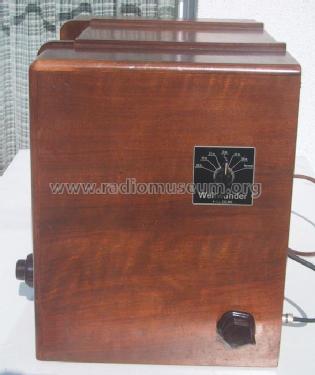

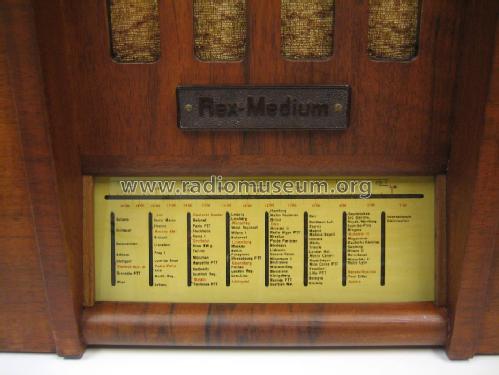

• Model: Rex-Medium - Autophon AG inkl. Téléphonie

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 400 x 260 mm / 18.9 x 15.7 x 10.2 inch

• Notes

• ZF bis Fabrik-Nr. 12999 = 465 kHz, ab Fabrik-Nr. 13000 = 471 kHz.

  3000/RD1625-1a

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Thali-Schemasammlung und Tungsram-Röhrenbestückung.

• Other Models

• Here you find 244 models, 187 with images and 148 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Autophon AG (inkl. Téléphonie SA); Solothurn
