• Country
• Switzerland

• Manufacturer / Brand
• Autophon AG (inkl. Téléphonie SA); Solothurn

• Year
• 1959–1967

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 95221

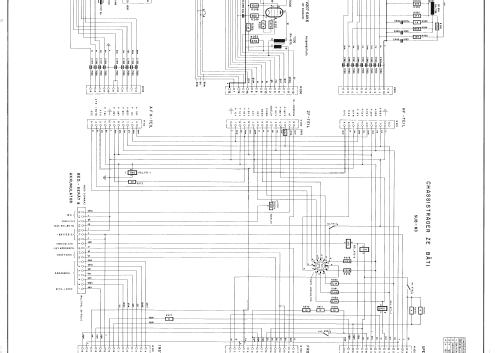

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit. / 12 / 24 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Zusatzempfänger ZE-83T - Autophon AG inkl. Téléphonie

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Notes
• Bereich 34 - 50 MHz;
  Zusatzempfänger als Zweitempfänger (neben Sendeempfänger TR-83 und Speisegerät SG-83 zur Funkstation SE-407 der Schweizer Armee gehörig), Einsatz vorwiegend mobil.

• Net weight (2.2 lb = 1 kg)
• 25 kg / 55 lb 1.1 oz (55.066 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• -- Schematic

• Author
• Model page created by Romina Bäriswyl. See "Data change" for further contributors.
