• Country
• Italy

• Manufacturer / Brand
• Autovox SPA; Roma

• Year
• 1967–1971

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 83117

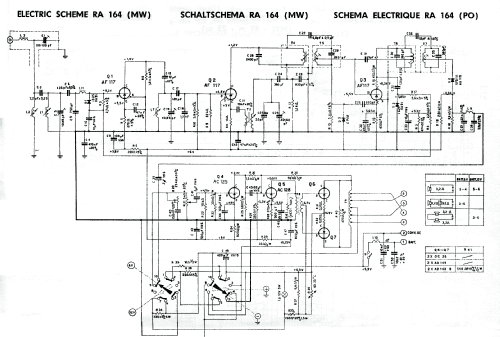

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF117 AF117 AF117 AC125 AC128 OC26 OC26

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 6 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Bermuda RA-164 - Autovox SPA; Roma

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 51 x 185 mm / 7.1 x 2 x 7.3 inch

• Notes

• Ricerca automatica a tastiera. Anche disponibile con personalizzazione con altoparlante per cruscotto di Fiat 127 e Fiat 128.

  Automatic tuning with push buttons.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Price in first year of sale
• 48,600.00 ITL

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Quattroruote - Aprile 1967; Febbraio e Marzo 1971

• Literature/Schematics (1)
• -- Original prospect or advert (Autovox - Autoradio-giranastri - Listino 1971)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
