• Country
• Italy

• Manufacturer / Brand
• Autovox SPA; Roma

• Year
• 1963 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 86342

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF117 AF117 AF117 OC75 AC128 OC26

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

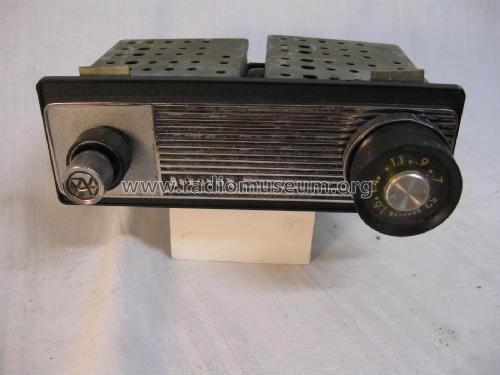

• Model: Bikini RA444 - Autovox SPA; Roma

• Shape
• Chassis only or for «building in»

• Notes
• Alternativ zum Endstufentransistor OC26 auch AD143B. 2-teilig, je Teil 85x51x105 mm. Speziell für den Einbau in Kleinwagen ohne Einbauschacht.

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
