Bikini RA445
Autovox SPA; Roma
- Country
- Italy
- Manufacturer / Brand
- Autovox SPA; Roma
- Year
- 1964 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 135178

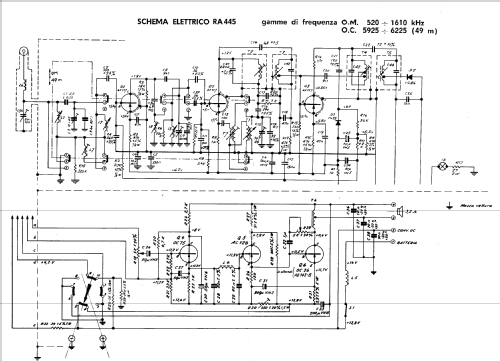

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 2 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Bikini RA445 - Autovox SPA; Roma
- Shape
- Chassis only or for «building in»
- Notes
- 2-teilig, je Teil 85×51×105 mm.
Speziell für den Einbau in Kleinwagen ohne Einbauschacht.
- Net weight (2.2 lb = 1 kg)
- 1.4 kg / 3 lb 1.3 oz (3.084 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by a member from D. See "Data change" for further contributors.
