Concorde RA3016

• Country
• Italy

• Manufacturer / Brand
• Autovox SPA; Roma

• Year
• 1971

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 83127

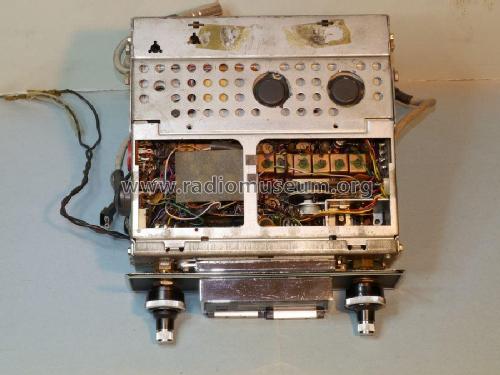

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 22

• Semiconductors
• 1W8449 1W8449 1W8450 1W8450 1W8450 BC113 AF185 AF117 AF117 AF117 SFT353 AC128 AD143 AD143 AF117 BC113 BC120 SFT337 BC153 BC153 BC153 BC113 E708 OA90 AA119 BA129

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Concorde RA3016 - Autovox SPA; Roma

• Shape
• Chassis only or for «building in»

• Notes

• Sintonia superelettronica a varicap. La lettura della scala-stazioni ha un indice a corsa luminosa.

  Electronic tuning by Varicaps.

  22 Transistor, 16 Diodi, 7 Diodi Varicap, 1 Diodo Zener.
  2 Circuiti Integrati autoprodotti Autovox 7 e 8.
  Possibilità di funzionare con positivo o negativo a massa.

• Price in first year of sale
• 105,000.00 ITL

• Mentioned in
• -- Original prospect or advert (Quattroruote - Febbraio e Marzo 1971)

• Literature/Schematics (1)
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)

• Literature/Schematics (2)
• -- Original prospect or advert (Autovox - Autoradio-giranastri - Listino 1971)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
