• Country
• Italy

• Manufacturer / Brand
• Autovox SPA; Roma

• Year
• 1969 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 260840

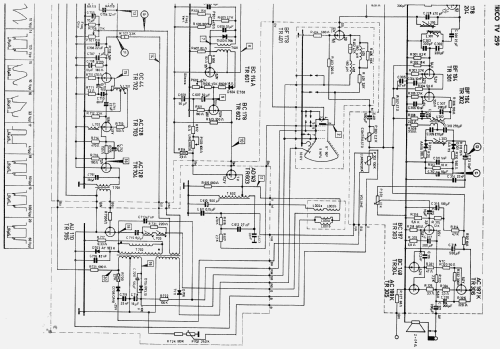

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 9WP4

• Number of Transistors
• 24

• Semiconductors
• BF225 BF224 BF194 BF178 BC148 BC177 OC44 BC115 BC116 BC178 BC187 AC187 AC188 AD149 AC128 AU110 AY103 TV11 BYX10 AA143 OA90 AA119 OA91

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 100-130; 200-250 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Jolly Minor 259 TV 259 - Autovox SPA; Roma

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 230 x 190 mm / 8.7 x 9.1 x 7.5 inch

• Notes

• ~9" b/w portable style TV with Italian standard CCIR B/G VHF/UHF tuner.
  Each semiconductor type listed once only. Transistor types for the VHF-UHF front-end (tuner) are not included since they are not listed in the manual.

  Modello disponibile in tre colori: Bianco, Grigio, Rosso.
  Con presa frontale per auricolare.
  Regolazione sincronismi (orizzontale/verticale) sul retro.



• Literature/Schematics (1)

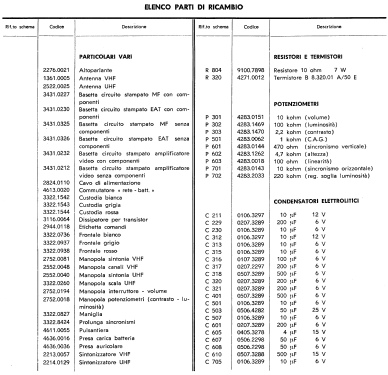

• Manuale per l'Assistenza Tecnica - AUTOVOX

• Author
• Model page created by a member from A. See "Data change" for further contributors.
