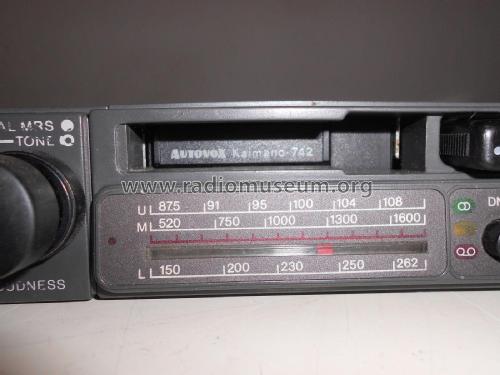

Kaimano 742
Autovox SPA; Roma
- Country
- Italy
- Manufacturer / Brand
- Autovox SPA; Roma
- Year
- 1977 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 303171
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 14 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Kaimano 742 - Autovox SPA; Roma
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 175 x 42 x 175 mm / 6.9 x 1.7 x 6.9 inch
- Notes
-
controllo volume/tono/bilanciamento/loudness - DNR - potenza d'uscita: 7+7 watt max. - impedenza altoparlanti 4 Ω - commutatore mono/stereo - selettore FM/MW/LW - frequency range: FM 87,5/108 MHz - AM 520/1602 KHz - LW 150/262 KHz - riproduttore cassette stereo 7 con tasto play/ff.ww./rew - installazione con plancia estraibile.
Made in Italy.
- Net weight (2.2 lb = 1 kg)
- 1.650 kg / 3 lb 10.1 oz (3.634 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
