• Country
• Italy

• Manufacturer / Brand
• Autovox SPA; Roma

• Year
• 1960/1961

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 159543

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6BA6 6BE6 6BA6 12AU7

• Number of Transistors
• 2

• Semiconductors
• OA90 OA90 E250C50

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: RA120 - Autovox SPA; Roma

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 192 x 79 x 152 mm / 7.6 x 3.1 x 6 inch

• Notes

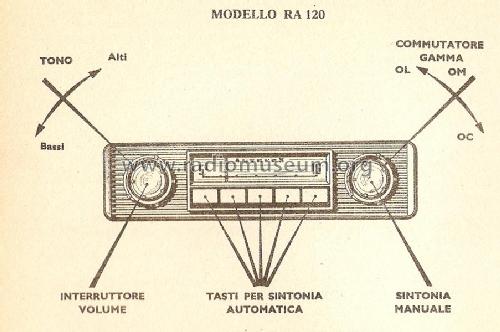

• Tasti di sintonia su canali prefissati manualmente.
  Tre gamme d'onda: OL (160-270 kHz), OM (520-1600 kHz) OC (5.95-6.3 MHz)
  2 transistori marcato Autovox:
  K0477.4 Transistor di potenza
  K0477.3 Transistor switch per alimentatore
  2 Diodi: OA90 Diodo al germanio; E250-C50 Raddrizzatore al selenio.
  "Per tutte le vetture".

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Source of data
• Guida Pratica Antique Radio III (2000)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
