• Country
• Italy

• Manufacturer / Brand
• Autovox SPA; Roma

• Year
• 1949 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 98245

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6NK7GT 6EA7GT_Fivre 6NK7GT 6Q7GT 6V6GT 6X5GT

• Number of Transistors

• Semiconductors
• Zerhacker

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

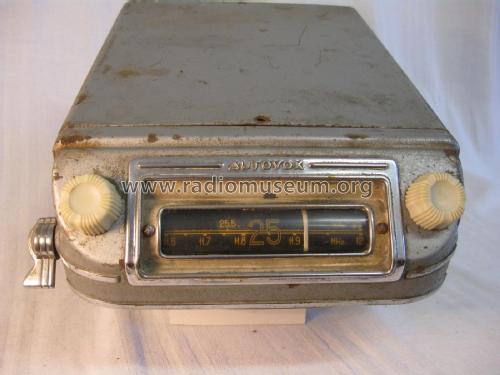

• Model: RA2/C12 - Autovox SPA; Roma

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 100 x 240 mm / 7.1 x 3.9 x 9.4 inch

• Notes

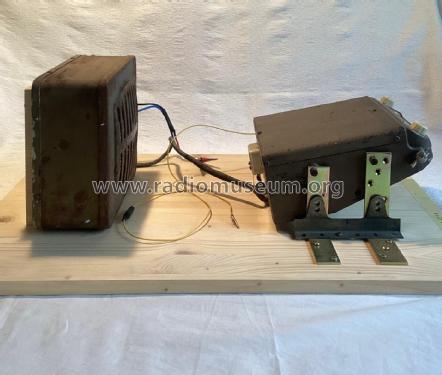

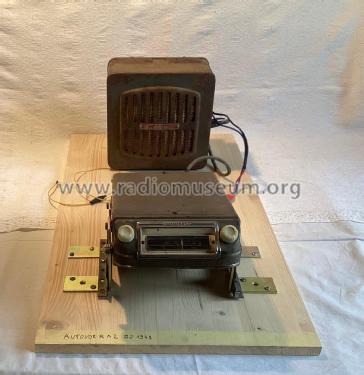

• L'alimentatore e l'amplificatore finale sono in un contenitore separato, a parte ancora è il solo altoparlante.

  Varianti:

  • RA2/C6: alimentazione 6 V
  • RA2/C12: alimentazione 12 V

  Gamme d'onda: OM + 5 OC.
  Wave bands: BC + 5x SW.

  The tube 6EA8GT in the schematic is an error. The correct tube is 6EA7GT.

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 19)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
