• Country
• Italy

• Manufacturer / Brand
• Autovox SPA; Roma

• Year
• 1971 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 142745

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• AF117 AF117 AF117 BC113 AC128 PTO AC187 AC188 AA119

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

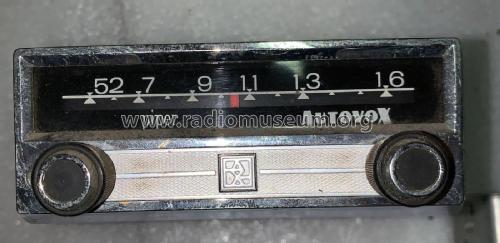

• Model: Piper RA314 - Autovox SPA; Roma

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 120 x 38.5 x 92 mm / 4.7 x 1.5 x 3.6 inch

• Notes

• Prezzo 1971: 26.000 ITL.

  Venduto anche come modello Piper RM314, completo del ricevitore Piper RA314 estraibile più altoparlante e telaio per il montaggio sotto plancia (prezzo 1971: 31.700 ITL).

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Source of data
• -- Original-techn. papers.

• Mentioned in
• -- Original prospect or advert (Autovox Autoradio/giranastri - listino generale 1971)

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
