• Country
• Italy

• Manufacturer / Brand
• Autovox SPA; Roma

• Year
• 1955/1956

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 167026

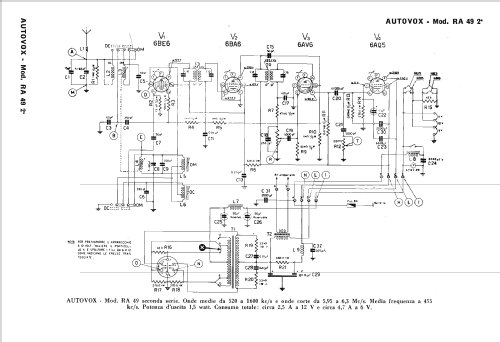

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6BE6 6BA6 6AV6 6AQ5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: RA49/FC - Autovox SPA; Roma

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 170 x 50 x 150 mm / 6.7 x 2 x 5.9 inch

• Notes
• Dimensioni indicate relative al sintonizzatore. Dimensioni alimentatore: 8 x 7 x 17 cm. Anche modello con alimentazione 12 V.

• Source of data
• Guida Pratica Antique Radio III (2000)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
