Ritmo targa oro 620
Autovox SPA; Roma
- Country
- Italy
- Manufacturer / Brand
- Autovox SPA; Roma
- Year
- 1979/1980
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 202388
car radio della mia collezione
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF ? /10700 kHz
- Tuned circuits
- 5 AM circuit(s) 5 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Ritmo targa oro 620 - Autovox SPA; Roma
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 190 x 45 x 90 mm / 7.5 x 1.8 x 3.5 inch
- Notes
-
Modello uguale all'Autovox 620
FM IF with 2 additional piezo (ceramic) filters SFE 10,7
- Author
- Model page created by Pasquale Baiocato. See "Data change" for further contributors.
- Other Models
-
Here you find 300 models, 195 with images and 177 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Autovox SPA; Roma
Collections
The model Ritmo targa oro is part of the collections of the following members.
Forum contributions about this model: Autovox SPA; Roma: Ritmo targa oro 620
Threads: 1 | Posts: 2
Buongiorno, ho trovato questa autoradio, uguale ,ma con un altro nome: Autovox 620. Penso che sia stata venduta dall'Autovox direttamente, e che il modello nella scheda facesse perte di una fornitura per l'automobile FIAT Ritmo. Che devo fare per inserire il mio modello? Grazie. Aldo Molina
Attachments

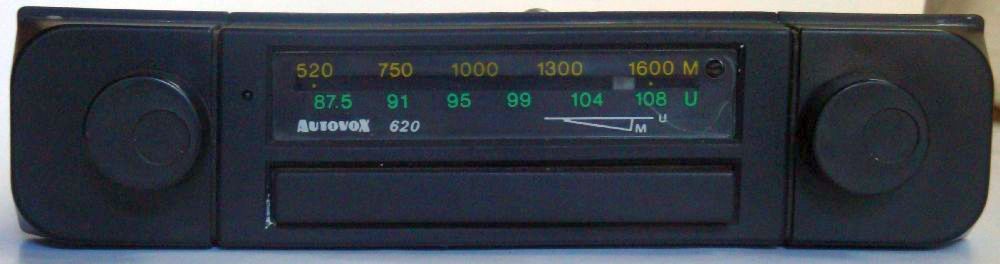

- frontalino (31 KB)

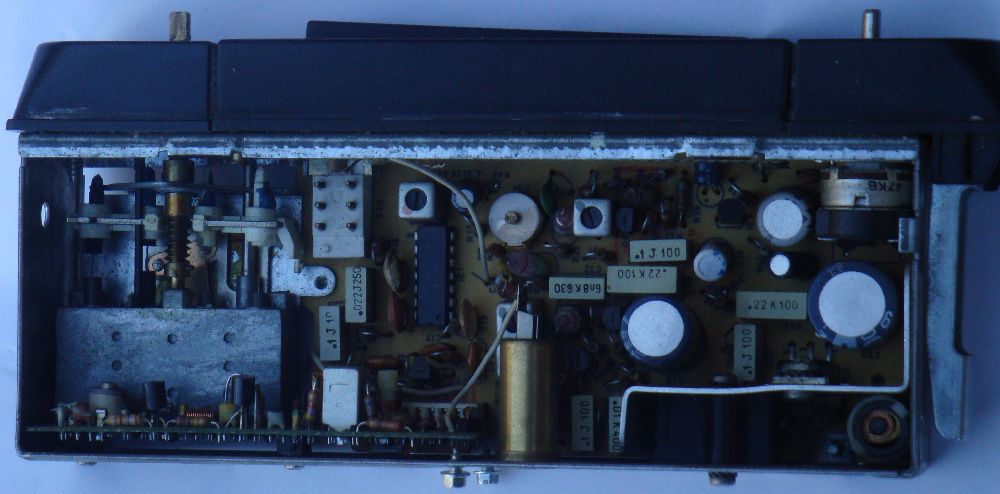

- interno (70 KB)

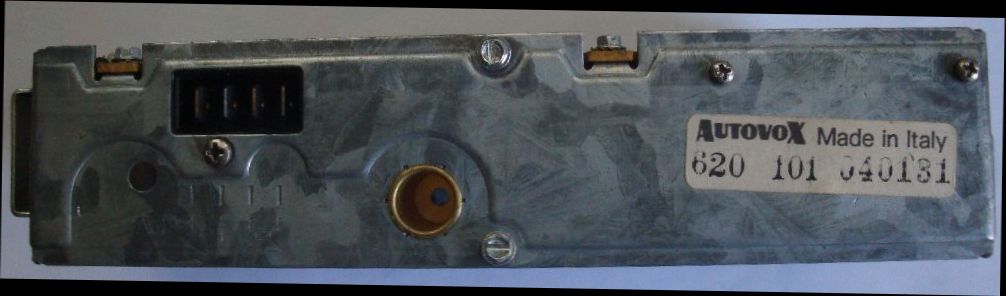

- retro (40 KB)
Aldo Molina, 20.Sep.11
