Televisore TM44
Autovox SPA; Roma
- Country
- Italy
- Manufacturer / Brand
- Autovox SPA; Roma
- Year
- 1962 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 349423

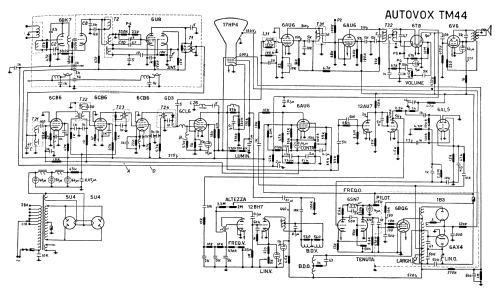

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6BK7 6U8 6CB6 6CB6 6CB6 6AU6 6AV6 6T8 6V6 6CL6 6AU6 12AU7 6AL5 12BH7 6SN7 6BQ6 6AX4 1B3 5U4 5U4 17HP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110-280 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Televisore TM44 - Autovox SPA; Roma
- Notes
-
Televisore in bianco/nero con sola VHF.
Cinescopio da 17 pollici con deflessione 70°.
- Mentioned in
- -- Schematic (“Televisori Commerciali” E. Costa U. Hoepli editore, vol. I, II edizione 1962.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
