• Country
• Italy

• Manufacturer / Brand
• Autovox SPA; Roma

• Year
• 1955 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 126454

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• 6BQ7A 6X8 6CB6 6CB6 6CB6 6AN8 6CL6 6AU6 6AU6 6AL5 6AV6 6V6GT 6AU6 12AX7 12AU7 6AL5 6AQ5 6SN7GTB 6BQ6GTB or 6CU6 6AX4GT 1B3GT 5U4GB 21ALP4A

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220; 230 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

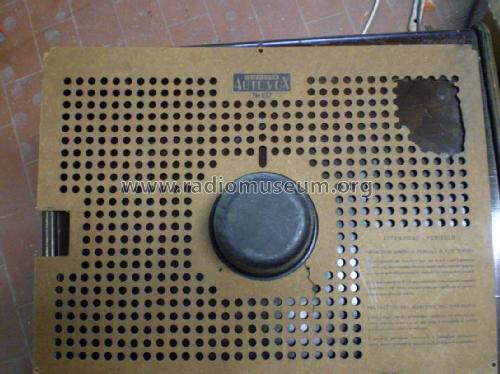

• Model: TM637-21 - Autovox SPA; Roma

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 570 x 55 x 62 mm / 22.4 x 2.2 x 2.4 inch

• Notes
• 21" screen diameter.
  VHF

• Net weight (2.2 lb = 1 kg)
• 41.8 kg / 92 lb 1.1 oz (92.07 lb)

• Price in first year of sale
• 10,680.00 PTE

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
