• Country
• Great Britain (UK)

• Manufacturer / Brand
• AVO Ltd.; London

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 141170

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-128 / 190-250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

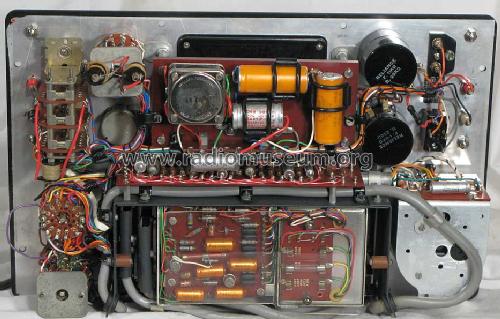

• Model: Transistor Analyser Mk 2 - AVO Ltd.; London

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 390 x 140 x 275 mm / 15.4 x 5.5 x 10.8 inch

• Notes
• for NPN and PNP transistors: Collector voltage range 0-150Vdc, Collector Current range 0-1A, Range of Base Current 0-1mA/1-40mA, Current gain (beta) 0-25/0-250, Noise (NF) 1-20dB/21-40dB, CE leakage current (Ico) ;first indication 2 micro-amperes.

• Net weight (2.2 lb = 1 kg)
• 7.6 kg / 16 lb 11.8 oz (16.74 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Juhani Makivuoti † 21.09.13. See "Data change" for further contributors.
