- Country
- Great Britain (UK)
- Manufacturer / Brand
- Baird (brand) - John Logie, Ltd.(Television); Scophony-Baird; London
- Year
- 1951 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 136341
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 195-225; 226-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org

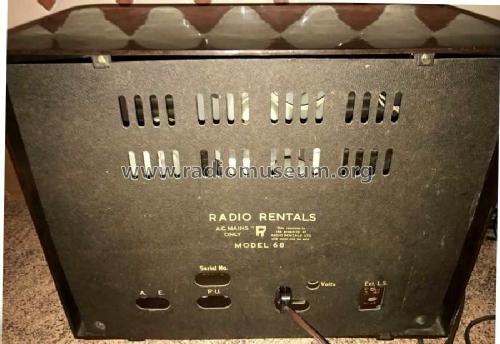

- Model: 68 - Baird brand - John Logie, Ltd.
- Notes
-
Radio Rentals started Branding Radios "Baird" in 1950s, this is one of the first.
Made by Radio Rentals.
- Source of data
- -- Schematic
- Literature/Schematics (1)
- Paul Stennings CD, vol 2.
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
