Everyman - Portable 164 late

Baird (brand) - John Logie, Ltd.(Television); Scophony-Baird; London

Data
Forum
Pictures
Collections

  • Year
  • 1949 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 262519

 Technical Specifications

  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Line (AC, UC or DC not known) / 200-250 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Everyman - Portable 164 [late] - Baird brand - John Logie, Ltd.
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 470 x 350 x 430 mm / 18.5 x 13.8 x 16.9 inch
  • Notes

  • 405 Line "Portable"-TV with built-in antenna, 9" CRT, VHF tuner.
    Portable means moveable inside the apartment, not for outdoor purpose.

    Slightly different to the other listed Baird 164 model:

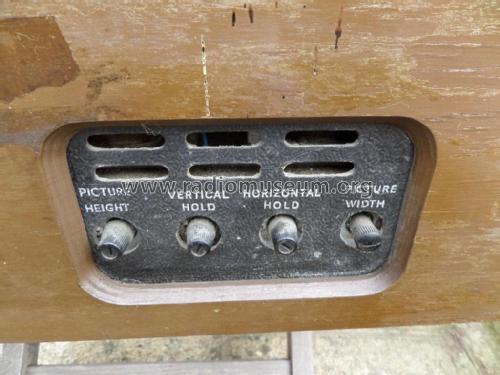

    Control "Picture Width" instead of "Vision Interf'ce Limiter"
    Has "three sensitivity taps" instead of "fan holes only"

    Uses  partly Rimlock type valves.

  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
