- Country
- Great Britain (UK)
- Manufacturer / Brand
- Baird (brand) - John Logie, Ltd.(Television); Scophony-Baird; London
- Year
- 1968 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 132395
- Number of Tubes
- 10
- Valves / Tubes

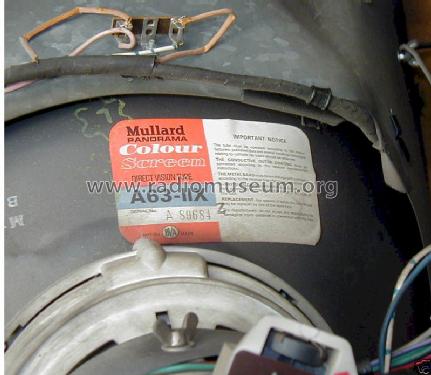

- A63-11X
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: M.712 - Baird brand - John Logie, Ltd.
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 810 x 810 x 620 mm / 31.9 x 31.9 x 24.4 inch
- Notes
-
Baird M 712;
25"/61 cm dual standard hybrid chassis TV
405 lines VHF turret tuner b/w TV and 625 lines UHF push-buttons PAL colour TV. Correct tube quantity unknown.

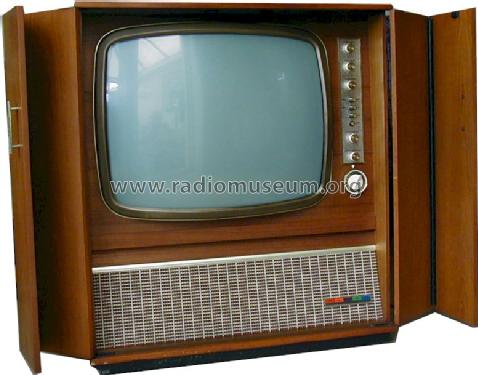

Cabinet with full-length doors.Made by Radio Rentals.
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
