• Country
• Great Britain (UK)

• Manufacturer / Brand
• Baird (brand) - John Logie, Ltd.(Television); Scophony-Baird; London

• Year
• 1948

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 92439

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• Z77 Z77 Z77 Z77 Z77 Z77 Z77 D77 6503 KT36 KT36 PZ30 DH63 KT76 EB41 EY51

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Wooden case

• from Radiomuseum.org

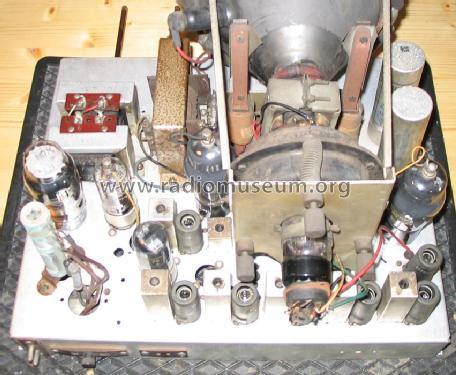

• Model: T163 [London] - Baird brand - John Logie, Ltd.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 470 x 345 x 430 mm / 18.5 x 13.6 x 16.9 inch

• Notes
• 405 Line "Portable" TV with built-in antenna, 9" GEC CRT, Portable means moveable inside the apartment, not for outdoor purpose.

• Price in first year of sale
• 58.00 GBP

• Author
• Model page created by a member from A. See "Data change" for further contributors.
