• Country
• Great Britain (UK)

• Manufacturer / Brand
• Alba (Brand) Balcombe Ltd., ALBA (Radio & Television) Ltd; London

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 201853

• • Brand: Alba

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• VP2B_Mullard VP2B_Mullard PM2DX VP2B_Mullard TDD2A PM22D

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 & 135 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 320 - Alba Brand Balcombe Ltd., ALBA

• Shape
• Tablemodel, with any shape - general.

• Notes
• The same chassis is fitted in the Alba 335 table radio and a similar chassis in the 455 radiogram.

• Literature/Schematics (1)

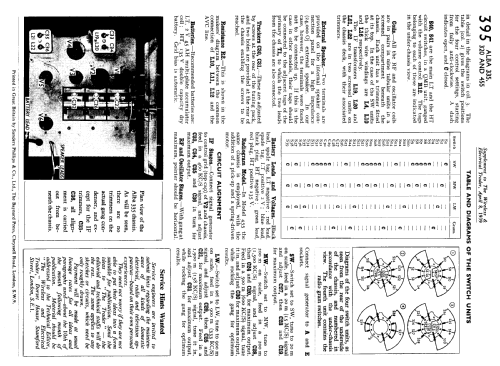

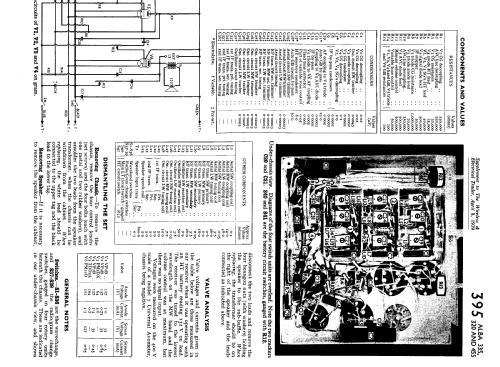

• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (395)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
