• Country
• United States of America (USA)

• Manufacturer / Brand
• Ballantine Laboratories Inc.; Boonton, New Jersey

• Year
• 1984 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 333098

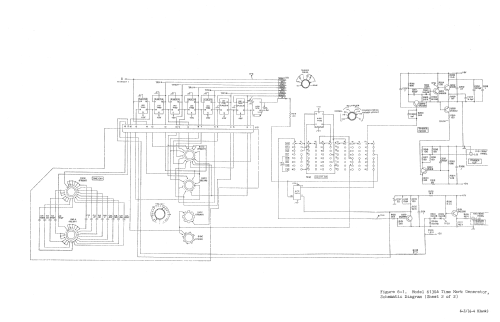

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 25 - 400Hz; 110/120/220/240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

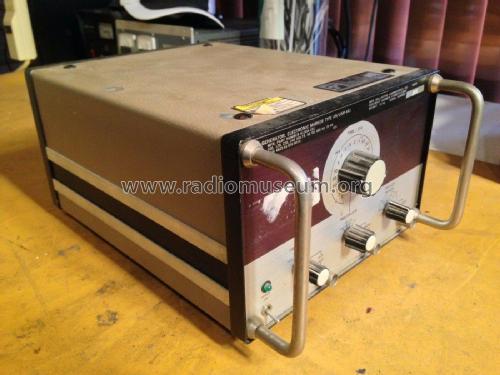

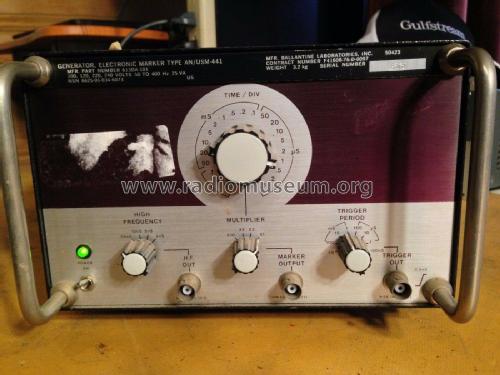

• Model: Time Mark Generator 6130A-101 - Ballantine Laboratories Inc.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 10.52 x 8.5 x 11.38 inch / 267 x 216 x 289 mm

• Notes

• 500 MHZ

  .5 volts into 50 ohms Output

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Author
• Model page created by Phillip Clay. See "Data change" for further contributors.
