Mozart 545B
Bandmaster: Sydney
- Country
- Australia
- Manufacturer / Brand
- Bandmaster: Sydney
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 169520

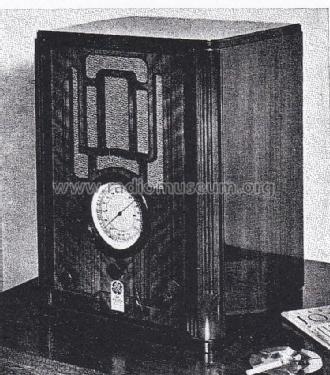

Image from 1935 Sales Booklet
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 120 & 82.5 & 2 & -3 & -9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Mozart 545B - Bandmaster: Sydney
- Shape
- Tablemodel, with any shape - general.
- Notes
-
This receiver uses the same chassis as the AWA Radiola 146.
Price given is for Eastern States. One Guinea (£1/1/-) extra in WA.
- Price in first year of sale
- 23.10 AUS £
- Literature/Schematics (1)
- Radio Trade Annual of Australia (6th Edition 1938, Page 253.)
- Literature/Schematics (2)
- Radio and Electrical Merchant (Vol. 8, No. 21 (138th Issue), 21/6/1935, Page 14.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
