Maritana 755B
Bandmaster: Sydney
- Country
- Australia
- Manufacturer / Brand
- Bandmaster: Sydney
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 169526

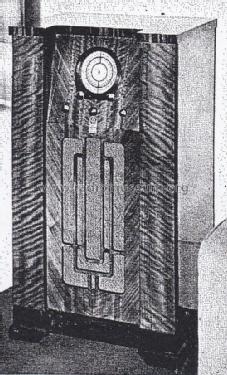

Image from 1935 Sales Booklet
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Storage and/or dry batteries / 135 & 67.5 & 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Maritana 755B - Bandmaster: Sydney
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
This receiver uses the same chassis as the AWA Radiola 243.
- Price in first year of sale
- 40.95 AUS £
- Literature/Schematics (1)
- Radio Trade Annual of Australia (6th Edition 1938, Page 254.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
