Beocenter 3500 2401

• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84542

• • Brand: B&O

• Picture

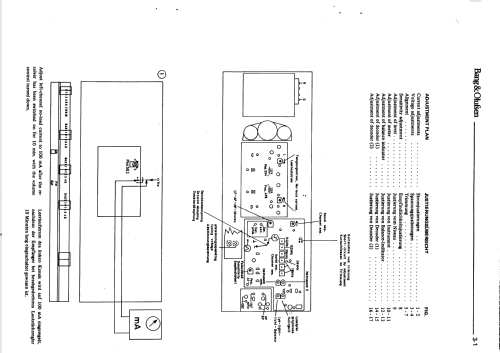

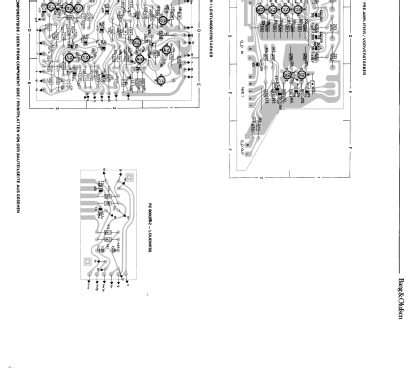

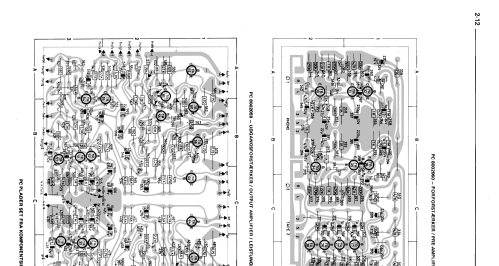

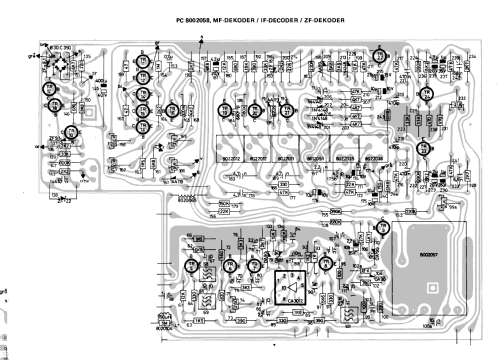

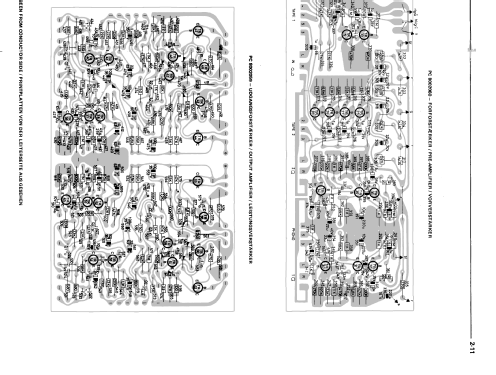

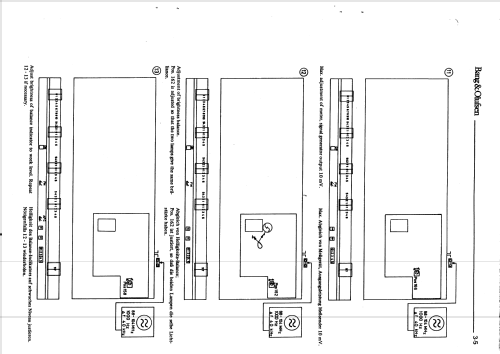

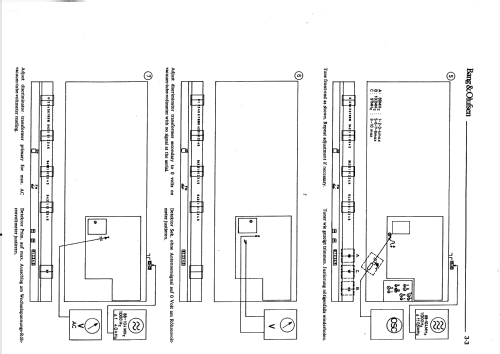

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Wave bands
• FM Broadcast Band Only

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 80 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Beocenter 3500 2401 - Bang & Olufsen B&O; Struer

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 145 x 350 mm / 22.8 x 5.7 x 13.8 inch

• Notes
• Designer: Jacob Jensen Kombination aus Steuergerät Beomaster 3000-2 und Plattenspieler Beogram 3000.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
