Beocenter 7000 T1801

• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 243041

• • Brand: B&O

• Picture

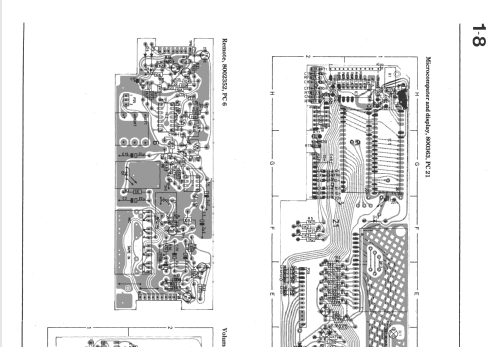

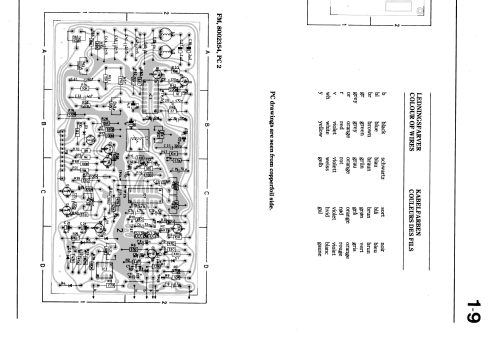

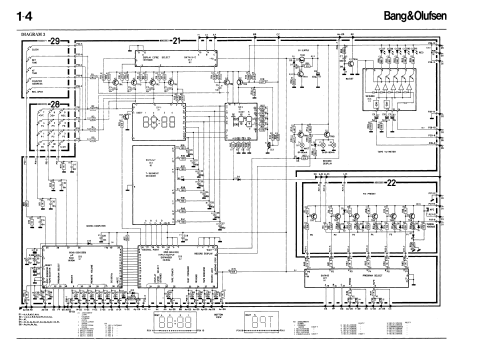

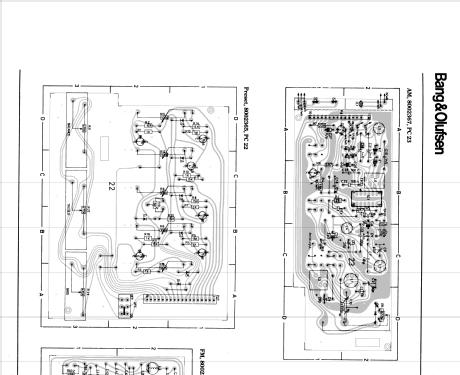

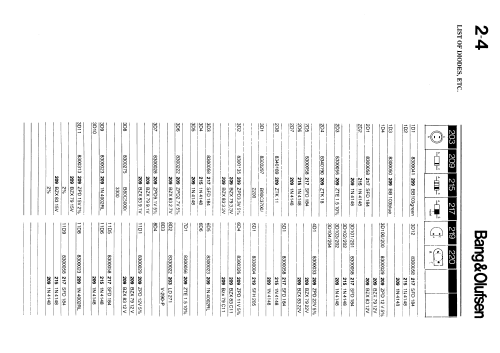

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Record Player + Tape Recorder; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Beocenter 7000 T1801 - Bang & Olufsen B&O; Struer

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 720 x 98 x 365 mm / 28.3 x 3.9 x 14.4 inch

• Notes

• Stereo Hifi Kompaktanlage mit Plattenspieler (33 u. 45U/min),
  Cassetten Recorder und Uhr. Mittels programmierter Zeit kann Gerät automatisch eingeschaltet werden.  Ausgangsleistung laut Typenschild 20-150W. Zwei Lautsprecherausgänge, jeweils für rechts und links. Sender können auf fünf Speicherplätzen programmiert werden.

• Net weight (2.2 lb = 1 kg)
• 16.5 kg / 36 lb 5.5 oz (36.344 lb)

• Author
• Model page created by Günter Döring. See "Data change" for further contributors.
