• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1978–1981

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 112162

• • Brand: B&O

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

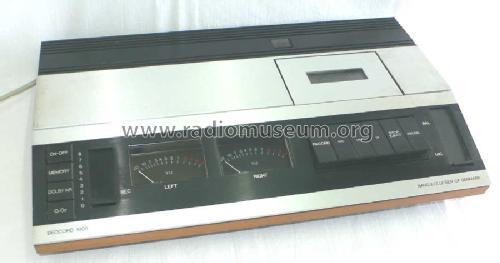

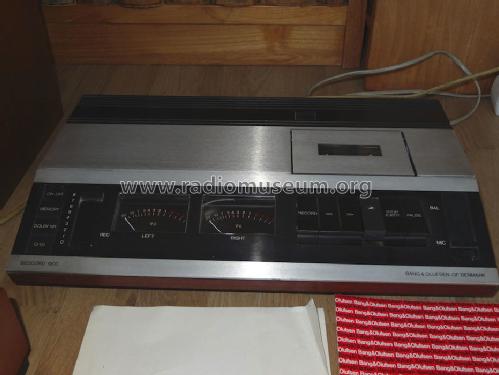

• Model: Beocord 1900 T2643 - Bang & Olufsen B&O; Struer

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 80 x 240 mm / 15.7 x 3.1 x 9.4 inch

• Notes
• Colours: Oak,Rosewood,Teak or White.

• Net weight (2.2 lb = 1 kg)
• 5.1 kg / 11 lb 3.7 oz (11.233 lb)

• Mentioned in
• Funkschau (22/1978, S. 1066)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
