• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1960 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 331665

• • Brand: B&O

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• AC107 AC107 AC126 AC126 OA85

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

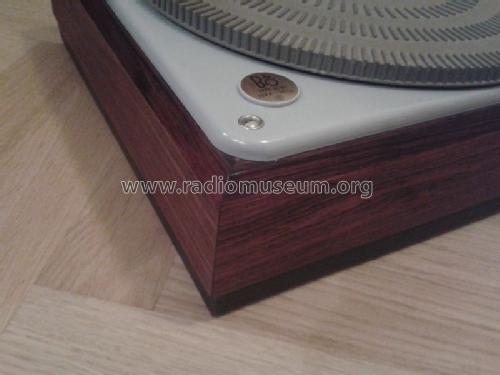

• Model: Beogram 42VF - Bang & Olufsen B&O; Struer

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 350 x 175 x 300 mm / 13.8 x 6.9 x 11.8 inch

• Notes

• 4 Geschwindigkeiten: 16 2/3, 33 1/3, 45 und 78 Umdr.
  Entzerrer-Vorverstärker eingebaut.

• Mentioned in

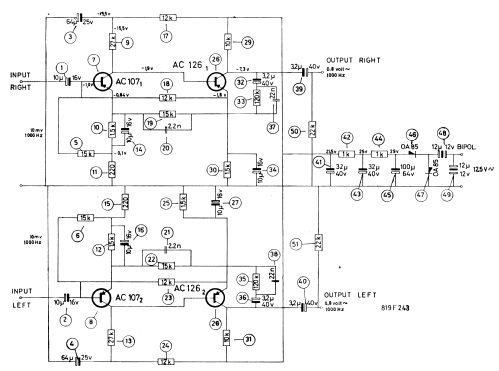

• -- Schematic

• Other Models

• Here you find 477 models, 426 with images and 265 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Bang & Olufsen (B&O); Struer
