• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1968–1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74443

• • Brand: B&O

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 5 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

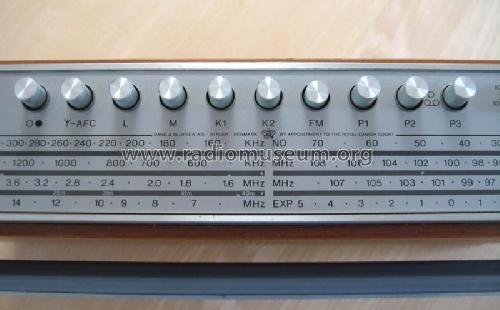

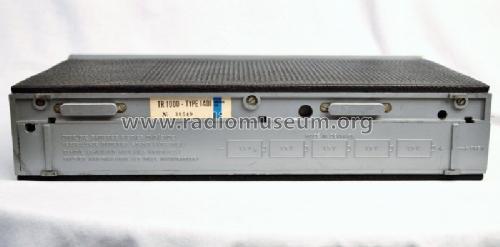

• Model: Beolit 1000 1401 - Bang & Olufsen B&O; Struer

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 359 x 201 x 70 mm / 14.1 x 7.9 x 2.8 inch

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Source of data
• -- Original-techn. papers.

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. III

• Mentioned in
• Guida Pratica Transistor Radios

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
