• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1970–1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106240

• • Brand: B&O

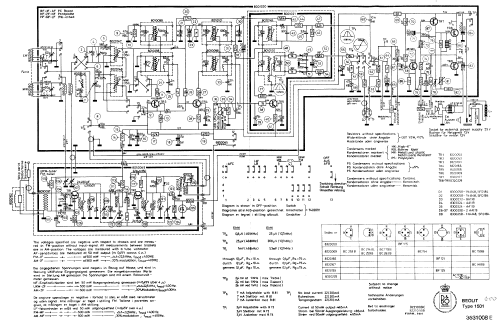

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BF115 BF115 BF125 BF121 BF121 BC154 or. BC159 BC148 AC117 AC175

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

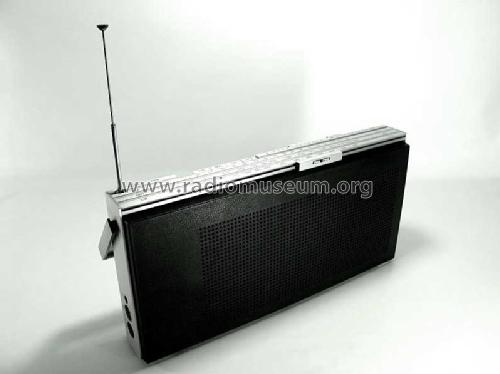

• Model: Beolit 600 1501 - Bang & Olufsen B&O; Struer

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 360 x 210 x 50.5 mm / 14.2 x 8.3 x 2 inch

• Notes

• Not the same as Model-ID = 73894.
  FM 87.5 - 104 MHz.

  Speaker: 180×120 mm / 4 Ohm.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 36.50 £

• Source of data
• - - Data from my own collection

• Mentioned in
• -- Original prospect or advert (Trader Service Sheet 3130/ 1974)

• Author
• Model page created by Spiros Tsianakas. See "Data change" for further contributors.
