• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164389

• • Brand: B&O

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF102 AF115 AF116 AF116 AF116 AC126 AC126 AC128 AC128

• Main principle
• Superheterodyne (common); none

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage

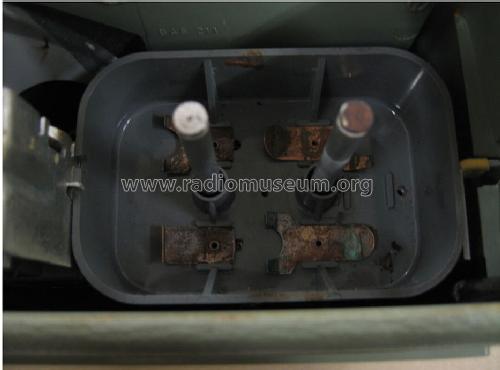

• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

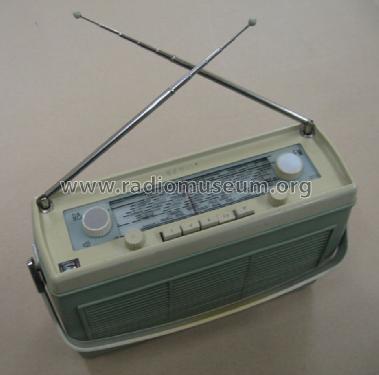

• Model: Beolit 609FM - Bang & Olufsen B&O; Struer

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 320 x 210 x 110 mm / 12.6 x 8.3 x 4.3 inch

• Notes

• Ein- / Ausschalter im Bass-Regler; Ziehen schaltet das Gerät ein.

  Sendersuche wird mit Schwungrad unterstützt.

  Autohalterung dazu erhältlich (Preis: 275 ATS)

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 2,580.00 ATS

• Source of data
• -- Schematic

• Author
• Model page created by Peter Gransitzki. See "Data change" for further contributors.
