• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 95074

• • Brand: B&O

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 41

• Semiconductors
• 2N5034 2N5034 2N5034 2N5034

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org

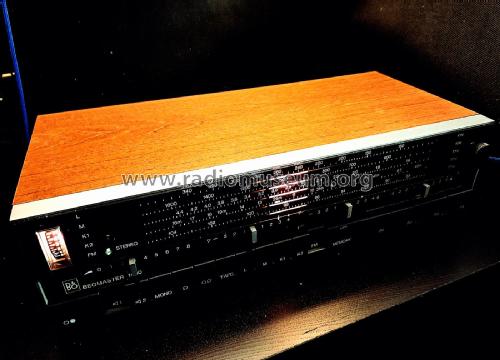

• Model: Beomaster 1400 M - Bang & Olufsen B&O; Struer

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 414 x 112 x 252 mm / 16.3 x 4.4 x 9.9 inch

• Notes
• Receiver model working with DIN 45500 specification (2×15 W), 4 FM Presets.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Mentioned in
• FS 16/1968

• Author
• Model page created by a member from A. See "Data change" for further contributors.
