Beomaster 1900

• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1976–1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79897

• • Brand: B&O

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (undistorted)

• Material
• Various materials

• from Radiomuseum.org
• Model: Beomaster 1900 - Bang & Olufsen B&O; Struer

• Shape

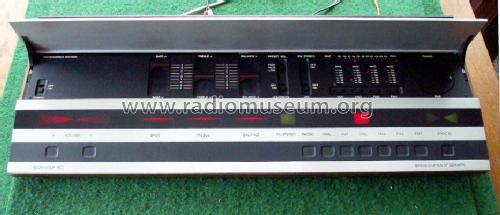

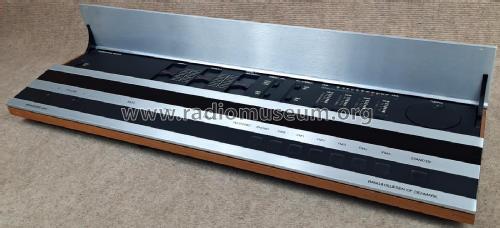

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 620 x 60 x 250 mm / 24.4 x 2.4 x 9.8 inch

• Notes

• FM Stereo Receiver
  2x25 Watt (8 Ohm)
  THD: 0,13%, Bandbreite: 10-40000 Hz

  Preis in Dänemark 1978: 2765 kr.

  Design: Jacob Jensen und Jens Bang

• Net weight (2.2 lb = 1 kg)
• 7.6 kg / 16 lb 11.8 oz (16.74 lb)

• Mentioned in
• -- Original prospect or advert (Hi-Fi Revyen - 78 page 13)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
