• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121805

• • Brand: B&O

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110: 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 30 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Beomaster 2400 2901 - Bang & Olufsen B&O; Struer

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 685 x 75 x 270 mm / 27 x 3 x 10.6 inch

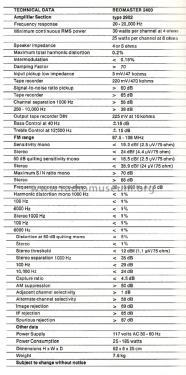

• Notes

• - Frequency response 20-20000 Hz
  - 30 Watts per channel at 4 ohms
  - 25 Watts per channel at 8 ohms
  - THD 0,2%
  - FM Range 87,5 - 108 MHz
  - Power Consumption 25 - 185 Watts

  Price in Danmark 1978: 3280 kr.

• Net weight (2.2 lb = 1 kg)
• 8.2 kg / 18 lb 1 oz (18.062 lb)

• Mentioned in
• Funkschau ((21/1978, S. 998))

• Literature/Schematics (1)
• -- Original prospect or advert (Hi-Fi Revyen-78 - page 13 (Danmark))

• Author
• Model page created by Wilfried Winter. See "Data change" for further contributors.
