Beomaster 3000 2402

• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1969–1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 112586

• • Brand: B&O

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 63

• Semiconductors
• 8320xxx CA3012 µA703 ZF18 AA119 BB103 BA138 OA90 1N4148 ZE1,5 B80C5000/3000 B30C350 SFE-10.7MA

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org
• Model: Beomaster 3000 2402 - Bang & Olufsen B&O; Struer

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 580 x 95 x 260 mm / 22.8 x 3.7 x 10.2 inch

• Notes

• Stereo amplifier with FM receiver.
  Power output 2 x 30 W sinusoidal; 2 x 60 W musical. Frequency response 40 - 20,000 Hz ± 1.5 dB. Connections: Phono, Tape: 1+2 (DIN), Speakers: 2 sets, Headphones.
  Bass control ± 17 dB at 50 Hz; Treble control ± 14 dB at 10 kHz.
  Receiver: FM 87.5 ÷ 104 MHz with 2 µV sensitivity. Frequency response 20 ÷ 15,000 Hz ± 1.5 dB.

  8320xxx are B & O part numbers for all transistors in this set (FET / Si-NPN / Si-PNP) - no details known yet.

• Net weight (2.2 lb = 1 kg)
• 8.7 kg / 19 lb 2.6 oz (19.163 lb)

• Source of data
• - - Manufacturers Literature

• Mentioned in

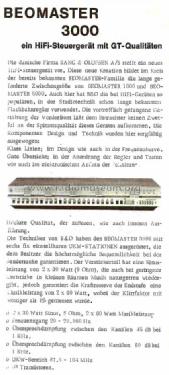

• -- Original prospect or advert ("Sperimentare" Italy J.C.D editor, number 2 February 1970)
