• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1969–1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 105120

• • Brand: B&O

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 110- 130, 220- 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

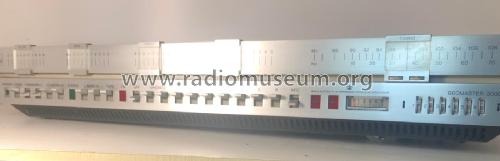

• Model: Beomaster 3000-2 - Bang & Olufsen B&O; Struer

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 575 x 90 x 260 mm / 22.6 x 3.5 x 10.2 inch

• Notes

• Beomaster 3000-2, types 2402-2, 2404-2, 2405
  Stereo Receiver, 2 × 40 W Sinus, 2 x 60 Watt Musikleistung.
  Lautsprecherimpedanz 4 Ohm, Übertragungsbereich: 30...30000 Hz.

  Preis 1973 in Dänemark:  2360,-- DKR

• Net weight (2.2 lb = 1 kg)
• 8.6 kg / 18 lb 15.1 oz (18.943 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• Hi-Fi Arbogen 1973 - page 108 - Denmark

• Author
• Model page created by Pius Steiner. See "Data change" for further contributors.
