• Country
• Denmark

• Manufacturer / Brand
• Bang & Olufsen (B&O); Struer

• Year
• 1987

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 155314

• • Brand: B&O

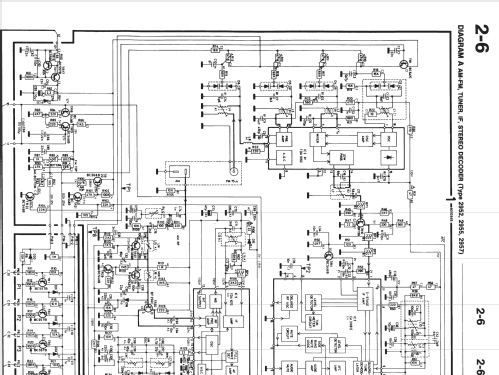

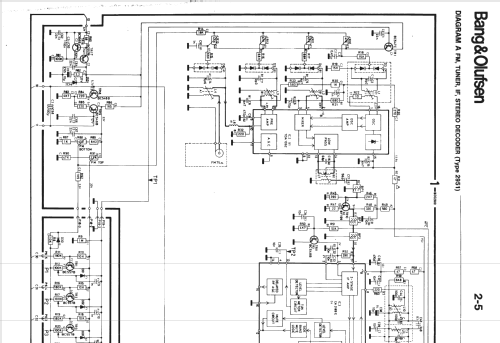

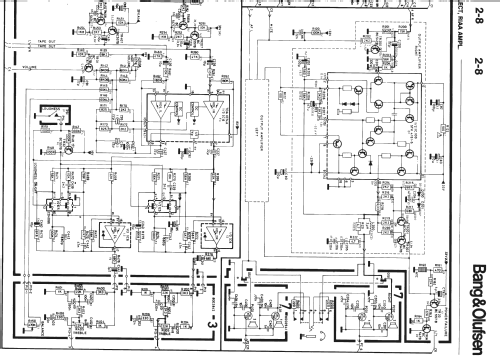

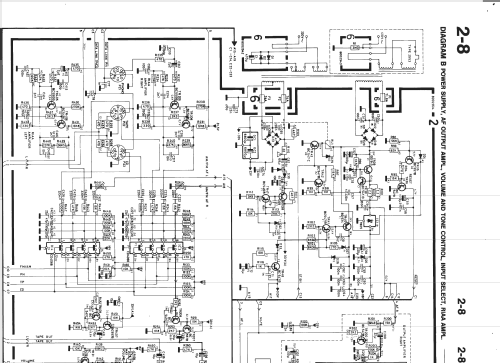

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 10700 kHz

• Wave bands
• FM Broadcast Band Only

• Details
• Radio with other functions

• Power type and voltage
• Alternating Current supply (AC) / 110/240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (80 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Beomaster 3300 - Bang & Olufsen B&O; Struer

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 620 x 70 x 250 mm / 24.4 x 2.8 x 9.8 inch

• Notes
• Bedienung über Sensorkontakte, 5 Senderspeicher, DIN-Eingänge für Tonband, Plattenspieler, CD-Spieler, Ausgangsleistung 2x30W an 8Ohm, Tiefen -Höhen- Balanceregelung über Schieberegler, Datalink, Standby-Betrieb, kein Ausschalter.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Author
• Model page created by Andreas Reuther. See "Data change" for further contributors.
